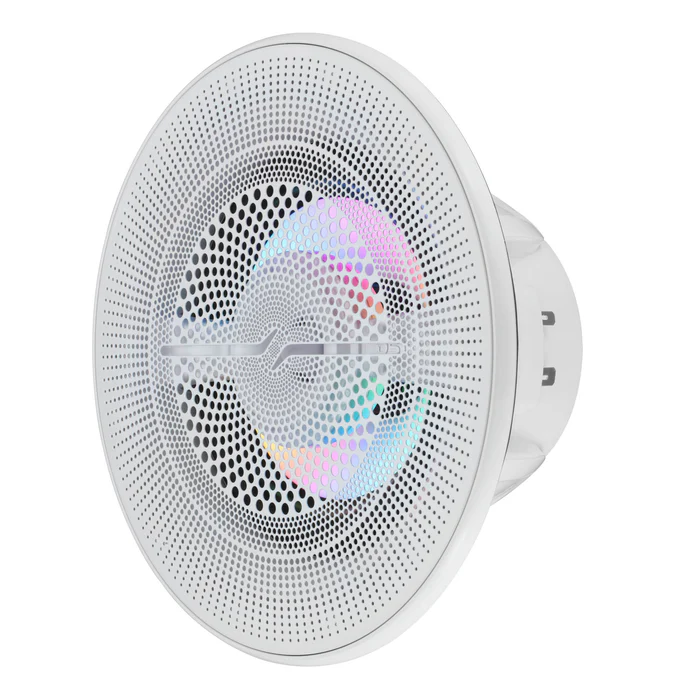

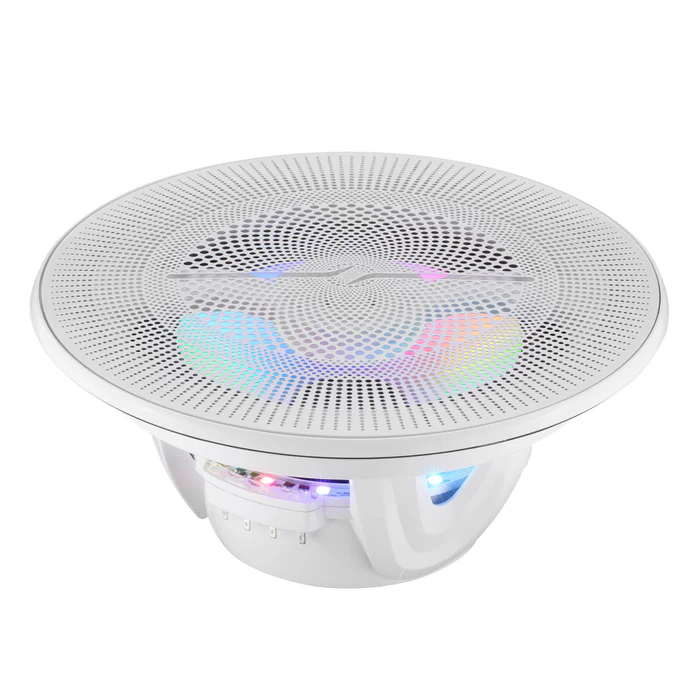

NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 2
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 3
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 4
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 5
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 6
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 7
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 8
NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - Image 9

NXL-LXY8 Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

€543,43

* Price includes VAT

Category:

Key Features

  • 8” 2-Way Marine-Grade Coaxial Speaker
  • IP65 Water & UV Resistant Construction
  • Floating Bullet Tweeter with Neodymium Magnet
  • Digital LED Ring (LC-DRM Compatible)
  • Flush-Mount Magnetic Grille for Clean Install

General Specifications

Nominal Diameter
8″ / 203mm
Nominal Impedance
4 ohms
RMS Power Handling
175W
MAX Power Handling
350W
Sensitivity (1w/1m)
96 dB
Frequency Response
40Hz-20KHz
Recommended HI Pass Crossover
50Hz
Sold in Pair or Single
Pair

Body / Features

Grill Type
PC+Stainless Steel
Marine Grade Type
IP65
RGB LED
Yes, Digital LED integrated (behind cone)
Digital LED Chip Type
1815S
Basket Material
Injection Molded Composite ASA with UV Protection Coating
Color / Finish
Gloss White

Woofer Specifications

Voice Coil Diameter
1.5″ / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Surround Material
Rubber
Basket Material
PC
Magnet Material
Ferrite+Neodymium
Magnet Weight
24oz + 1.1 oz

Tweeter Specifications

Voice Coil Diameter
1″ / 25.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4oz

Thiele & Small Parameters

Equivalent Volume
16.92L / 0.59ft3
Excursion (one way)
3mm
Free Air Resonance
58Hz
Mechanical Factor
7.599
Electrical Factor
0.834
Total Factor
0.752
Moving Mass
25.604g
Compliance
0.2875mm/N
Bl Factor
6.016
Voice Coil Inductance
1.4mH
Diaphragm Area
203.58cm2
DC Resistance
3.2 Ohms
Efficiency Bandwidth Product
69.5

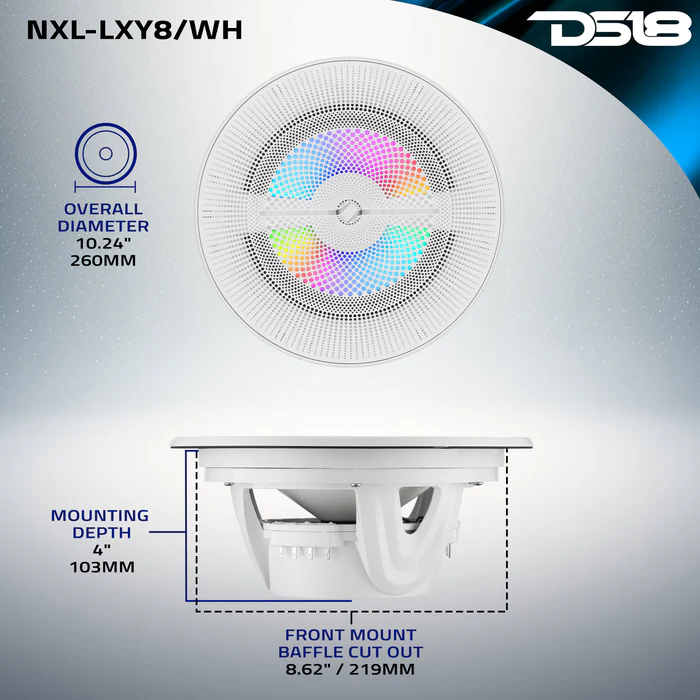

Speaker Measurement

Overall Diameter
10.24″ / 260mm
Overall Depth
4.5″ / 114mm
Front Mount Baffle Cutout
8.62″ / 219mm
Mounting Depth
4″ / 103mm
Motor Diameter
4.33″ / 110mm

Product Overview

DS18 NXL-LXY8

8” 2-Way Marine Coaxial with Floating Bullet Tweeter + Flush Magnetic Grille + RGB LED Lighting

The NXL-LXY8 gives your system full-range DS18 sound, show-ready RGB lighting, and a clean, screwless flush-mount fit that holds up through anything.

Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.

Full-Range Takeover
With a high-output neodymium-loaded tweeter suspended in front of the cone, the NXL-LXY8 gives you crisp, clean highs and tight midbass in one drop-in upgrade.

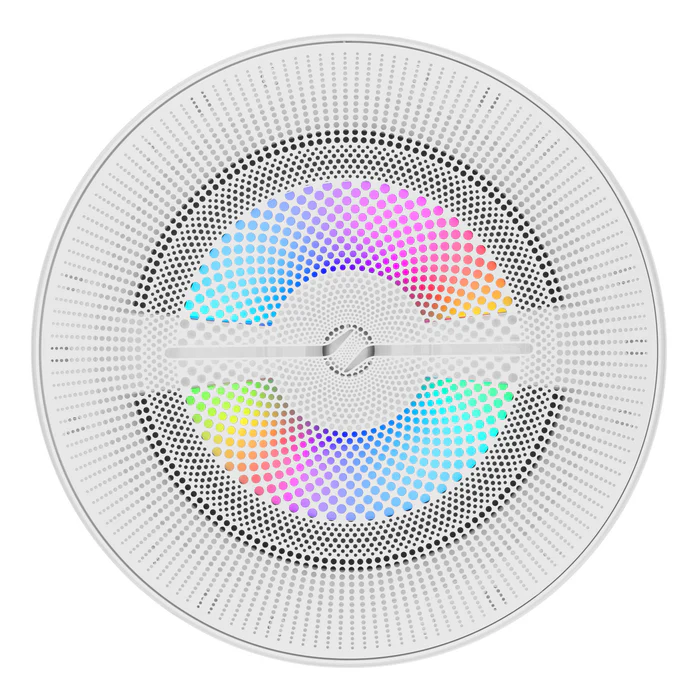

Digital LED Glow
This digital lighting system requires a digital signal from a compatible module to function correctly. Do not attempt to power the lights with direct current (DC), as this may causepermanent damage to the internal chip. To ensure proper operation, use DS18’s LC-DRM Digital Lighting Module.

Marine-Rated Strength for All Terrains
IP65-rated with UV-resistant housing and rubber surround, the NXL-LXY8 is built for boats, UTVs, bikes, and open-air builds that see water, salt, heat, and impact.

Bring LOUD full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY8!
