General Specifications
Nominal Diameter
6.5″ / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95 dB
Frequency Response
60Hz-20KHz
Recommended HI Pass Crossover
70Hz

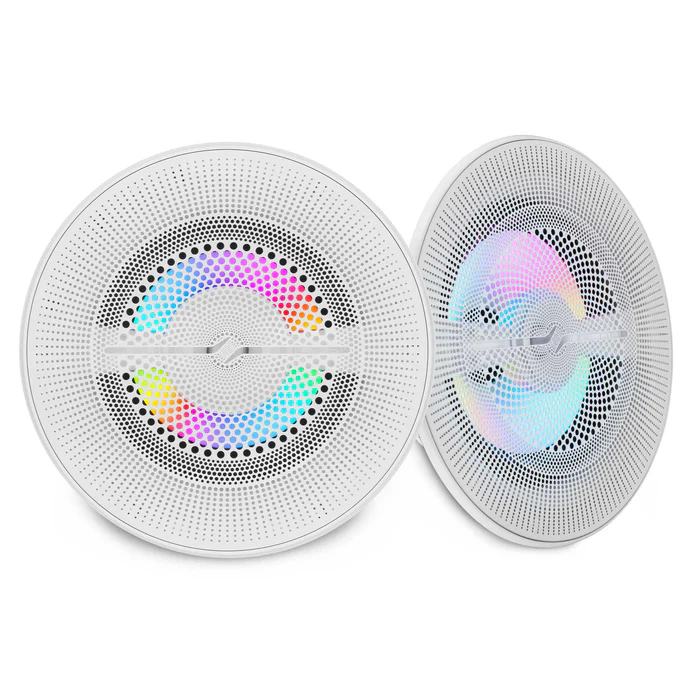

Sold in Pair or Single
Pair
Body / Features
Grill Type
PC+Stainless Steel
Marine Grade Type
IP65
RGB LED
Yes, Digital LED integrated (behind cone)
Digital LED Chip Type
1815S
Basket Material
Injection Molded Composite ASA with UV Protection Coating
Color / Finish
Gloss White
Woofer Specifications
Voice Coil Diameter
1.5″ / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Surround Material
Rubber
Basket Material
PC
Magnet Material
Ferrite+Neodymium
Magnet Weight
13oz + 1.1oz
Tweeter Specifications
Voice Coil Diameter
1″ / 25.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4oz
Thiele & Small Parameters
Equivalent Volume
3.15L / 0.11ft3
Excursion (one way)
3mm
Free Air Resonance
88Hz
Mechanical Factor
7.497
Electrical Factor
1.205
Total Factor
1.038
Moving Mass
16.603g
Compliance
0.1679mm/N
Bl Factor
5.138
Voice Coil Inductance
1.4mH
Diaphragm Area
114.99cm2
DC Resistance
3.2 Ohms
Efficiency Bandwidth Product
78.8

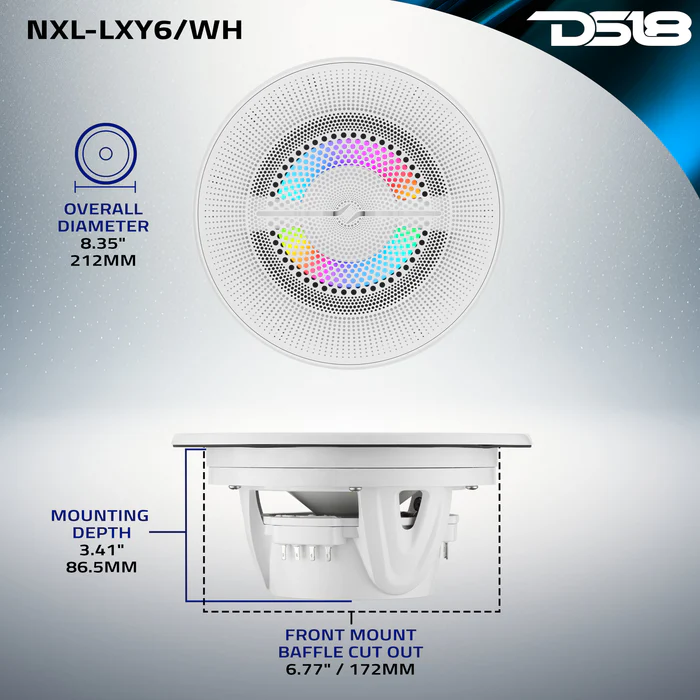

Speaker Measurement
Overall Diameter
8.35″ / 212mm
Overall Depth
3.8″ / 96.5mm
Front Mount Baffle Cutout
6.77″ / 172mm
Mounting Depth
3.41″ / 86.5mm
Motor Diameter
3.54″ / 90mm
Product Overview

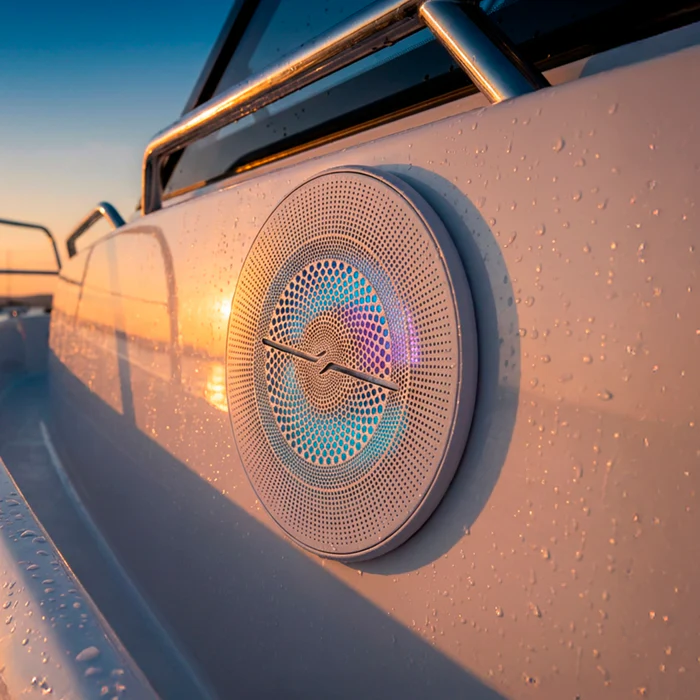

6.5” 2-Way Marine Coaxial with RGB Lighting
The NXL-LXY6 gives your marine or powersports build everything it could ask for from a speaker: high-output sound, weatherproof strength, and a factory-style finish with digital LED’s.
Powerful Coaxial Setup
Built around a 6.5” woofer + 1” floating bullet tweeter, this speaker delivers full-range audio from 40Hz–20kHz, perfectly-tuned for full-spectrum sound in outdoor environments. The neodymium magnet on the tweeter gives it the power to cut through wind and engine noise, while the ferrite woofer brings clean midbass you could feel throughout your entire vehicle.

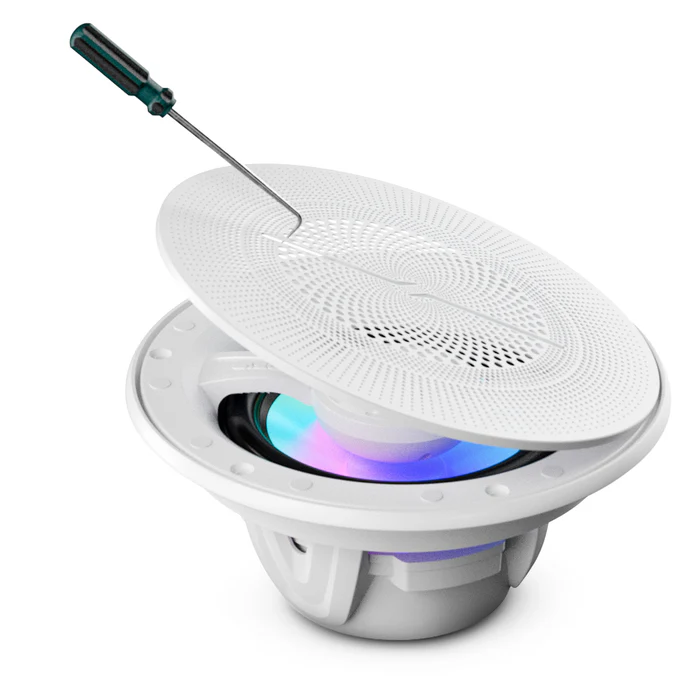

Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.
Real-World Ready
With an IP65 rating, UV-treated cone and rubber surround, the NXL-LXY6 is ready for any all elements adventure.

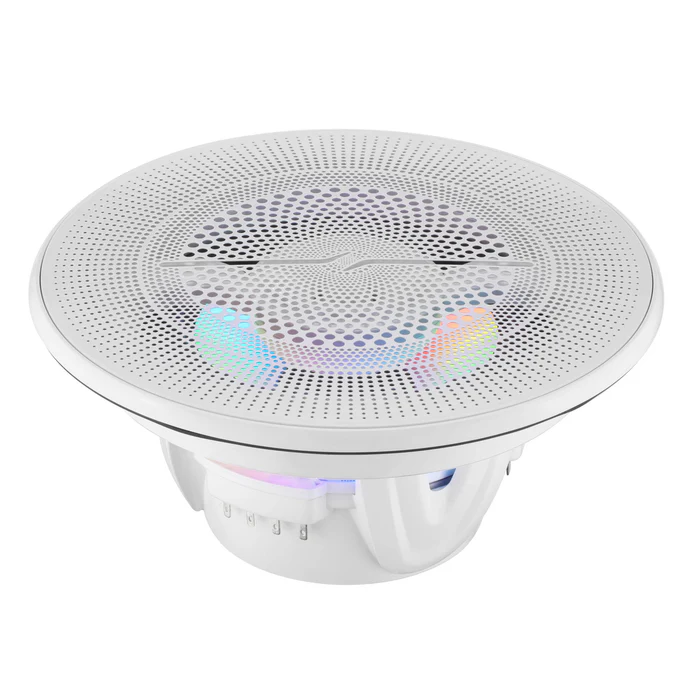

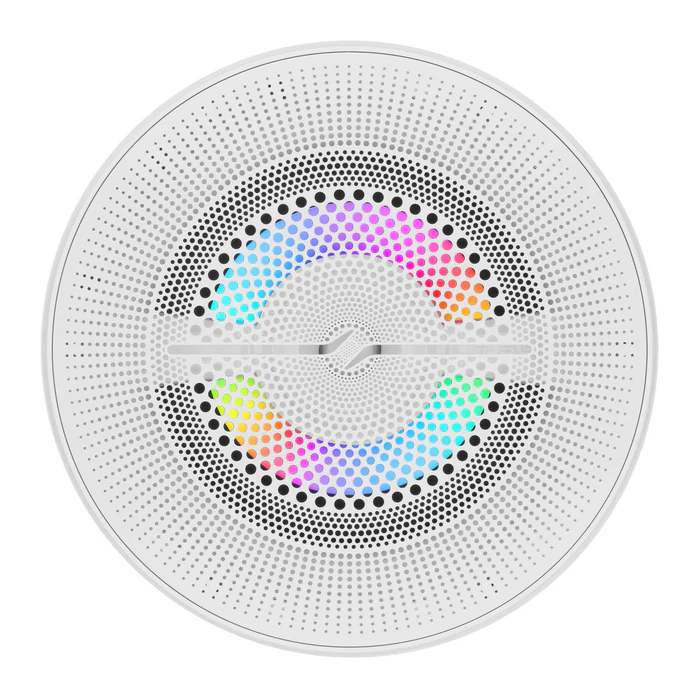

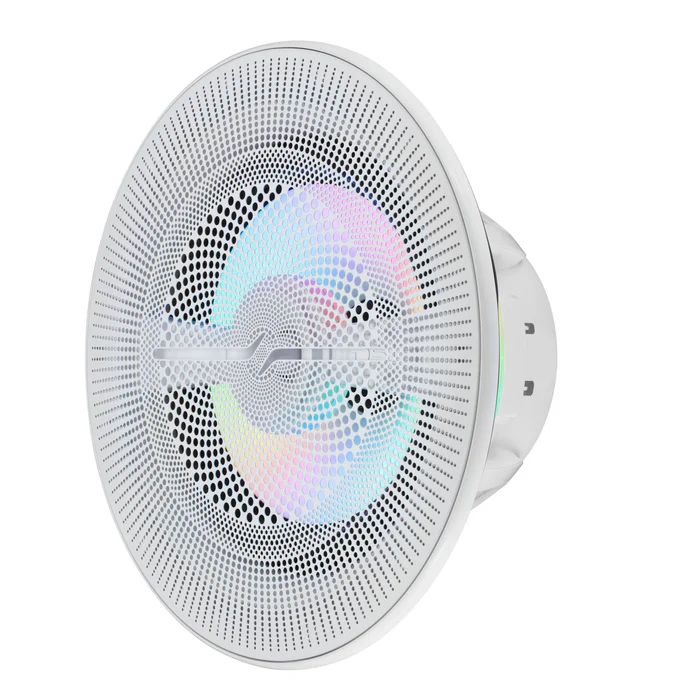

Digital LED Glow
This digital lighting system requires a digital signal from a compatible module to function correctly. Do not attempt to power the lights with direct current (DC), as this may cause
permanent damage to the internal chip. To ensure proper operation, use DS18’s LC-DRM Digital Lighting Module.
Bring full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY6!
